0015247040

0015247040

4 POSITION RECEPTACLE CONNECTOR 0.165" (4.20MM) THROUGH HOLE TIN

Call for availability

Manufactured by:

MOLEX

Mfr Part#:  0015247040

PACKAGING:  TRAY

STANDARD PACKAGE:  3,120

Availability

  • Qty in Stock: Call for availability

  • Min. Order Qty: 1

SPECIFICATION

APPLICATIONS:  GENERAL PURPOSE, INDUSTRIAL, MEDICAL, TELECOMMUNICATIONS

CATEGORIES:  CONNECTORS, INTERCONNECTS

CONNECTOR TYPE:  RECEPTACLE

CONTACT FINISH - MATING:  TIN

CONTACT FINISH - POST:  TIN

CONTACT FINISH THICKNESS - MATING:  100ΜIN (2.54ΜM)

CONTACT FINISH THICKNESS - POST:  100ΜIN (2.54ΜM)

CONTACT LENGTH - POST:  0.138" (3.50MM)

CONTACT MATERIAL:  BRASS

CONTACT SHAPE:  SQUARE

CONTACT TYPE:  FEMALE SOCKET

DETAILED DESCRIPTION:  4 POSITION RECEPTACLE CONNECTOR 0.165" (4.20MM) THROUGH HOLE TIN

FASTENING TYPE:  PUSH-PULL

FEATURES:  BOARD LOCK

INSULATION COLOR:  NATURAL

INSULATION HEIGHT:  0.446" (11.33MM)

INSULATION MATERIAL:  POLYAMIDE (PA66), NYLON 6/6

LEAD FREE STATUS / ROHS STATUS:  LEAD FREE / ROHS COMPLIANT

MANUFACTURER:  MOLEX, LLC

MANUFACTURER PART NUMBER:  0015247040

MANUFACTURER STANDARD LEAD TIME:  6 WEEKS

MATERIAL FLAMMABILITY RATING:  UL94 V-2

MOISTURE SENSITIVITY LEVEL (MSL):  1 (UNLIMITED)

MOUNTING TYPE:  THROUGH HOLE

NUMBER OF POSITIONS:  4

NUMBER OF POSITIONS LOADED:  ALL

NUMBER OF ROWS:  2

OPERATING TEMPERATURE:  -40°C ~ 105°C

PACKAGING:  TRAY

PITCH - MATING:  0.165" (4.20MM)

ROHS INFORMATION:  15-24-7040 CERT OF COMPLIANCE

ROW SPACING - MATING:  0.165" (4.20MM)

SERIES:  MINI-FIT® BMI? 42385

STANDARD PACKAGE:  3,120

STYLE:  BOARD TO BOARD OR CABLE

TERMINATION:  SOLDER

VOLTAGE RATING:  600V

APPLICATIONS:  GENERAL PURPOSE INDUSTRIAL MEDICAL TELECOMMUNICATIONS

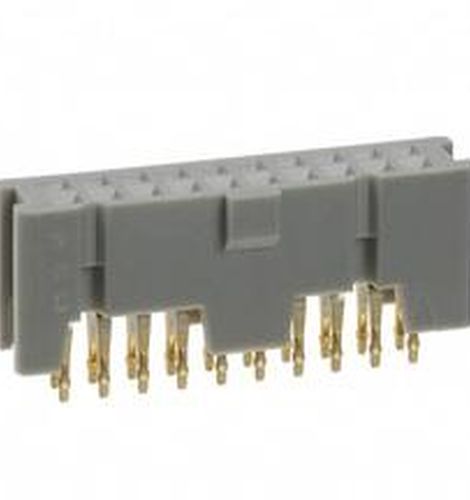

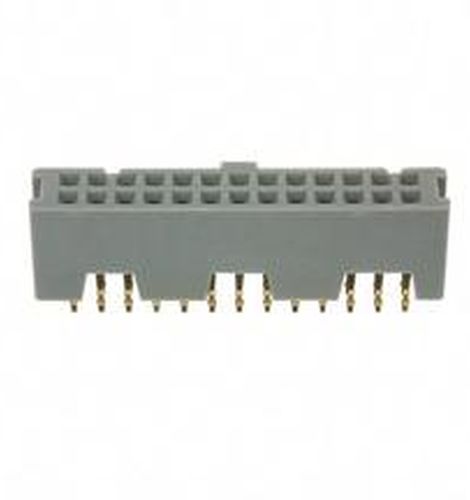

Related Products
